Bittwiste: pcap Capture File Editor (by Joke Snelders)
Bit-Twist contains two programs: • bittwist.exe: the pcap based ethernet packet generator • bittwiste.exe: pcap capture file editor
More information -click here Bittwiste can currently edit fields in the Ethernet, ARP, IP, ICMP, TCP and UDP headers. Here you can download the latest development release of Bit-Twist for Windows. The next steps are: • unzip bittwist-win-1.1.zip • copy bittwiste.exe to C:/WINDOWS/system32 You need Cygwin to run bittwiste under Windows. Cygwin is: • a collection of tools which provide a Linux look and feel environment for Windows. • a DLL (cygwin1.dll) which acts as a Linux API layer providing substantial Linux API functionality. If you do not have Cygwin (click here) installed on your Windows machine or if you do not want to install Cygwin you can also follow these steps: • download and unzip cygwin1.zip (cygwin1.zip contains cygwin1.dll) • copy cygwin1.dll to C:/WINDOWS/system32.
In this article I will show you how to replace portnumbers, IP and MAC addresses. Continue reading, download the sample file and follow along.
Replace IP addresses You can download the sample file http.pcap here. This file contains 3 IP addresses: 192.168.108.2 192.168.108.128 22.214.171.124 Use these options to replace 192.168.108.128 (old IP address) with 10.0.0.128 (new IP address):
-I input file -O output file -T edit the specified header -s source IP address; specify the old and new IP addresses -d destination IP address; specify the old and new IP addresses

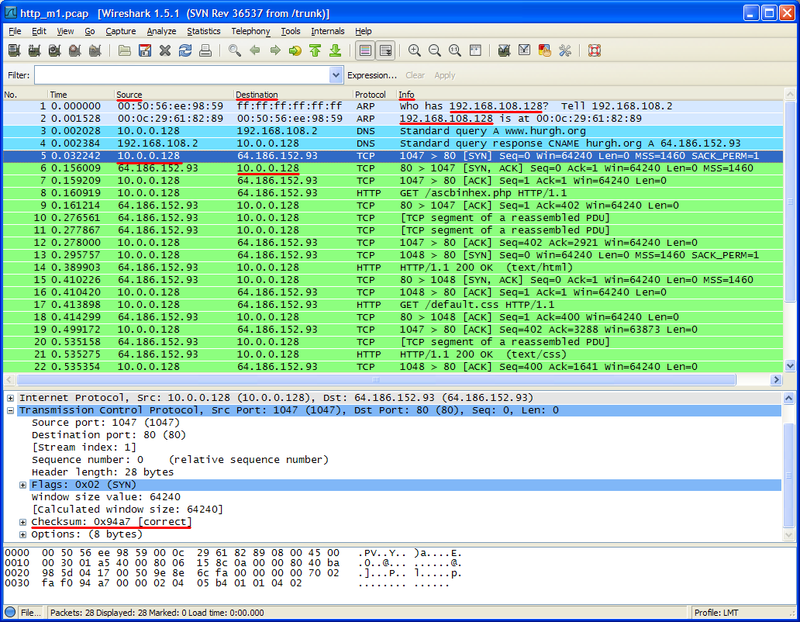

$ bittwiste -I http.pcap -O http_m1.pcap -T ip -s 192.168.108.128,10.0.0.128 -d 192.168.108.128,10.0.0.128 Click on the following screenshot to enlarge. The source and destination IP addresses have been replaced. You can see in the Packet Details pane, that bittwiste has also recalculate the IP, TCP and UDP checksums. But the ARP packets still contain the old IP address: 192.168.108.128. So move on to the next step to replace these addresses in the ARP header.
Use these options to replace the IP addresses in the ARP header:
-I input file -O output file -T edit the specified header -p sender IP address; specify the old and new IP addresses -q target IP address; specify the old and new IP addresses
$ bittwiste -I http_m1.pcap -O http_m2.pcap -T arp -p 192.168.108.128,10.0.0.128 –q 192.168.108.128,10.0.0.128

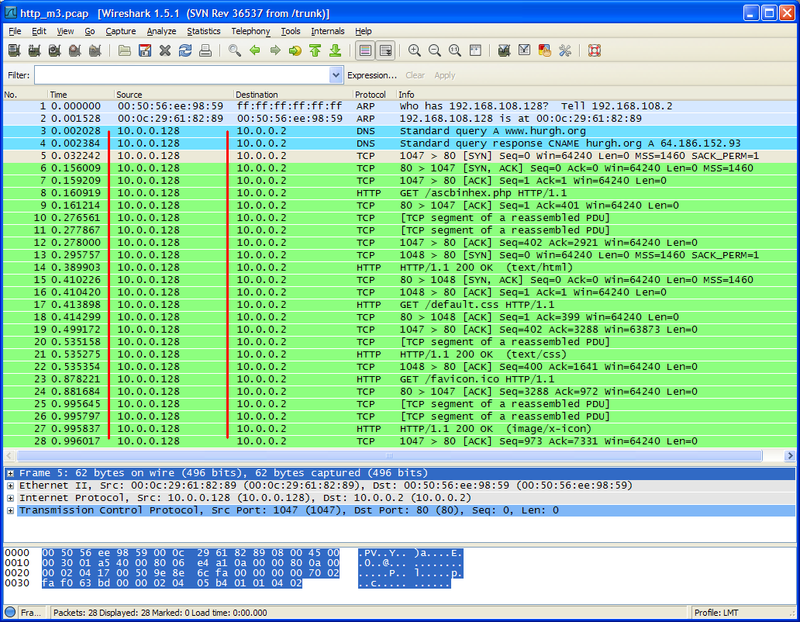

Note The following command will replace all source IP addresses with 10.0.0.128 and all destination IP addresses with 10.0.0.2. $ bittwiste -I http.pcap -O http_m3.pcap -T ip –s 10.0.0.128 –d 10.0.0.2
Replace MAC addresses Replace source and destination MAC addresses: $ bittwiste -I http_m2.pcap -O http_m3.pcap -T eth -s 00:0c:29:61:82:89,00:11:22:DD:EE:FF -d 00:0c:29:61:82:89,00:11:22:DD:EE:FF Replace MAC addresses in the ARP header: $ bittwiste -I http_m3.pcap -O http_m4.pcap -T arp -s 00:0c:29:61:82:89,00:11:22:AA:BB:CC -t 00:0c:29:61:82:89,00:11:22:AA:BB:CC
Replace port numbers TCP header $ bittwiste -I http_m4.pcap -O http_m5.pcap -T tcp -s 1047,5047 -d 1047,5047 $ bittwiste -I http_m5.pcap -O http_m6.pcap -T tcp -s 1048,5048 -d 1048,5048 UDP header $ bittwiste -I http_m6.pcap -O http_m7.pcap -T udp -s 53,530 -d 53,530 $ bittwiste -I http_m7.pcap -O http_m8.pcap -T udp -s 55005,5000 -d 55005,5000
Decode As: Looking at packets 3 and 4 you notice, that they are not decoded as DNS anymore. This is due to the change of port number 53 to 530. Use the following to decode the traffic on port 530 again as DNS: • right-click packet 3 • select Decode As... from the context menu • select DNS • hit Apply to see the result.
